Docker Compose

Dockerfile

Spring Boot Services

It is the same Dockerfile for all 5 services.

Dockerfile
# ---------- Stage 1: Build ----------
FROM maven:3.9.11-eclipse-temurin-21 AS builder
WORKDIR /app
COPY pom.xml .
COPY src ./src
RUN mvn clean package -DskipTests

# ---------- Stage 2: Run ----------
FROM eclipse-temurin:21-jre-jammy
WORKDIR /app
COPY --from=builder /app/target/*.jar token-generator.jar
ENTRYPOINT ["java", "-jar", "token-generator.jar"]

React SPA

Dockerfile
FROM node:22-alpine AS build
WORKDIR /app
COPY package*.json ./
RUN npm install
COPY . .
RUN npm run build

FROM nginx:stable-alpine
# Build output goes into .../react-ui
COPY --from=build /app/build /usr/share/nginx/html/react-ui
COPY nginx.conf /etc/nginx/conf.d/default.conf

With the following nginx.conf

server {
  listen 4001;
  server_name _;

  # Serve files from here
  root /usr/share/nginx/html;

  # Debug header to confirm we hit this server
  add_header X-Spa-Debug "nginx-react-ui" always;

  # Exact: /react-ui (no trailing slash)
  # Serve index.html directly, no redirect, no internal rewrite
  location = /react-ui {
    try_files /react-ui/index.html =404;
  }

  # Prefix: /react-ui/ (assets + SPA routes)
  # Try static files, then fall back to SPA index
  location ^~ /react-ui/ {
    try_files $uri $uri/ /react-ui/index.html;
  }

  # Safety: don’t emit absolute Location headers for any internal rewrites
  absolute_redirect off;
}

Docker Compose Configuration

I managed to put together a Docker Compose configuration. The one important thing to remember: replace localhost with the container name for all inter-service communication.

The one exception

When your application needs to send the user’s browser to a new URL (like during an OAuth redirect), Docker container names won’t work. Browsers are outside Docker’s private network and can’t resolve container names. Here, you must use a valid host address such as:

http://localhost:7080/... (when testing locally), or
your actual server’s hostname/domain in production.

Rule of thumb

Service ↔ Service (inside Docker): use container names (e.g., mysql, registration, bff).
Browser ↔ App (outside Docker): use hostnames (localhost, or your domain).

Following this simple rule ensures your services talk to the right neighbors and your users can still access your app correctly.

As an example the bff/REACT_URI: http://localhost:7080/react-ui keeps localhost since it is a redirection url.

docker-compose.yml

gist link of of the file: https://gist.github.com/Mehdi-HAFID/97ce26dde39ef0a4e662e5235a2ec951

docker-compose.yml
services:
  mysql:
    image: mysql:9.4
    container_name: mysql
    ports:
      - "3306:3306"
    environment:
      MYSQL_ROOT_PASSWORD: 'CcmN*`6@3T9H%P#yg^V<7v'
      MYSQL_DATABASE: identity_hub
    volumes:
      - mysql_data:/var/lib/mysql
    healthcheck:
      test: [ "CMD-SHELL", "mysqladmin ping -h localhost -uroot -p\"$MYSQL_ROOT_PASSWORD\" || exit 1" ]
      interval: 5s
      timeout: 2s
      retries: 5
    networks:
      - nidam-net

  registration:
    build:
      context: ./registration
      dockerfile: Dockerfile
    container_name: registration
    ports:
      - "4000:4000"
    environment:
      SPRING_DATASOURCE_URL: jdbc:mysql://mysql:3306/identity_hub?useSSL=false&allowPublicKeyRetrieval=true
      SPRING_DATASOURCE_USERNAME: root
      SPRING_DATASOURCE_PASSWORD: 'CcmN*`6@3T9H%P#yg^V<7v'
      SERVER_PORT: 4000
    depends_on:
      mysql:
        condition: service_healthy
    networks:
      - nidam-net

  token-generator:
    build:
      context: ./token-generator
      dockerfile: Dockerfile
    container_name: token-generator
    ports:
      - "4002:4002"
    environment:
      SPRING_DATASOURCE_URL: jdbc:mysql://mysql:3306/identity_hub?useSSL=false&allowPublicKeyRetrieval=true
      SPRING_DATASOURCE_USERNAME: root
      SPRING_DATASOURCE_PASSWORD: 'CcmN*`6@3T9H%P#yg^V<7v'
      SERVER_PORT: 4002
      REVERSE_PROXY_URI: http://reverse-proxy:7080
      ISSUER: http://reverse-proxy:7080/auth
    healthcheck:
      test: [ "CMD", "curl", "-f", "http://localhost:4002/auth/.well-known/openid-configuration" ]
      interval: 5s
      timeout: 2s
      retries: 12
    depends_on:
      mysql:
        condition: service_healthy
    networks:
      - nidam-net

  reverse-proxy:
    build:
      context: ./reverse-proxy
      dockerfile: Dockerfile
    container_name: reverse-proxy
    ports:
      - "7080:7080"
    environment:
      SERVER_PORT: 7080
      REACT_URI: http://nidam-spa:4001/react-ui
      AUTHORIZATION_SERVER_URI: http://token-generator:4002/auth
      BFF_URI: http://bff:7081
    healthcheck:
#      test: [ "CMD", "curl", "-f", "http://localhost:7080/actuator/health/readiness" ]
      test: [ "CMD", "curl", "-f", "http://localhost:7080/auth/.well-known/openid-configuration" ]
      interval: 5s
      timeout: 2s
      retries: 12
    depends_on:
      token-generator:
        condition: service_healthy
    networks:
      - nidam-net

  nidam:
    build:
      context: ./nidam
      dockerfile: Dockerfile
    container_name: nidam
    ports:
      - "4003:4003"
    environment:
      SERVER_PORT: 4003
      SLEEP_SECONDS: "10"
      ISSUER: http://reverse-proxy:7080/auth
      REVERSE_PROXY_URI: http://reverse-proxy:7080
    depends_on:
      reverse-proxy:
        condition: service_healthy
    networks:
      - nidam-net

  bff:
    build:
      context: ./bff
      dockerfile: Dockerfile
    container_name: bff
    ports:
      - "7081:7081"
    environment:
      SPRING_DATASOURCE_URL: jdbc:mysql://mysql:3306/identity_hub?useSSL=false&allowPublicKeyRetrieval=true
      SPRING_DATASOURCE_USERNAME: root
      SPRING_DATASOURCE_PASSWORD: 'CcmN*`6@3T9H%P#yg^V<7v'
      SERVER_PORT: 7081
#      REVERSE_PROXY_URI: http://reverse-proxy:7080
      ISSUER: http://reverse-proxy:7080/auth
      REACT_URI: http://localhost:7080/react-ui
      RESOURCE_SERVER_URI: http://nidam:4003
    depends_on:
      reverse-proxy:
        condition: service_healthy
    networks:
      - nidam-net

  spa:
    build:
      context: ./nidam-spa
      dockerfile: Dockerfile
    container_name: nidam-spa
#    ports:
#      - "4001:4001"
    environment:
      REACT_APP_BACKEND_REGISTRATION_URL: http://registration:4000/
      REACT_APP_REVERSE_PROXY_URI: http://reverse-proxy:7080
      REACT_APP_BASE_URI: http://reverse-proxy:7080/react-ui
      REACT_APP_RESOURCE_SERVER_URI: http://reverse-proxy:7080/bff/api
      REACT_APP_LOGIN_URL: http://reverse-proxy:7080/bff/oauth2/authorization/token-generator
    depends_on:
      - bff
    networks:
      - nidam-net

volumes:
  mysql_data:
networks:
  nidam-net:
    driver: bridge

Build & Run

Project Structure

Create a root directory (e.g., Nidam).
Place all 6 repositories inside this directory.
Copy the docker-compose.yml file into the root directory.

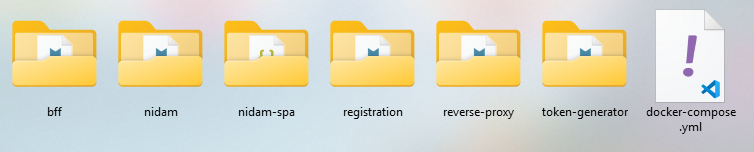

Nidam root folder

Build & Start

From the terminal, navigate to the root directory and run:

docker compose up --build -d

Once the services are running, open your browser and go to http://localhost:7080/react-ui to access Nidam.
